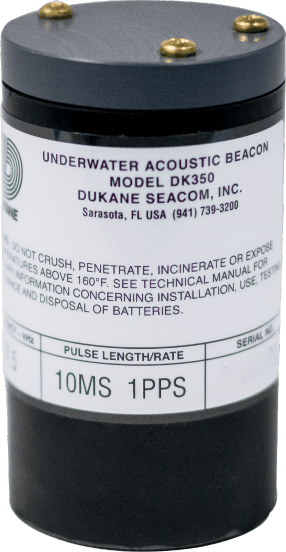

DK350
Specifications
Dukane Seacom 350 series Beacons are designed and engineered to provide a durable low cost effective underwater sound source.
This compact 3″ by 1.7 “unit is powered by a replaceable 9 volt Alkaline or Li battery readily available worldwide.
The DK350 is manufactured from corrosion-resistant epoxy material to withstand the rigors of environmental conditions seen by the military and off-shore industry in location and recovery work.
Beacon Specifications
Operating Frequency
37.5 kHz ± 1 kHz
Operating Depth
Surface to 4000 Feet (1219 meters)
Pulse Length
9ms minimum
Pulse Repetition Rate
0.9 Pulse/Sec minimum
Operating Life
20 days (Alkaline battery) / 40 Days (Li battery)
Acoustic Output, Initial
>163 dB re 1 micro Pascal at 1 meter
Operating Temperature Range
+28°F (-2.2°C) to +100°F(+37.8°C)
Actuation
Fresh or salt water
Size
1.70″ diameter x 3.07″ long (4.32 cm diameter 7.80 cm long)
Weight, Beacon
Less than 1 lb (454 grams, including battery)
Material
Cap: PVC; Body: Epoxy
Storage Temperature Range
-65°F (-54°C) to 160°F (71°C)
Power Source
Replaceable 9V Alkaline or Lithium Battery
We reserve the right to change the design and specification of goods supplied without notice to incorporate improvements in design and manufacturing techniques
